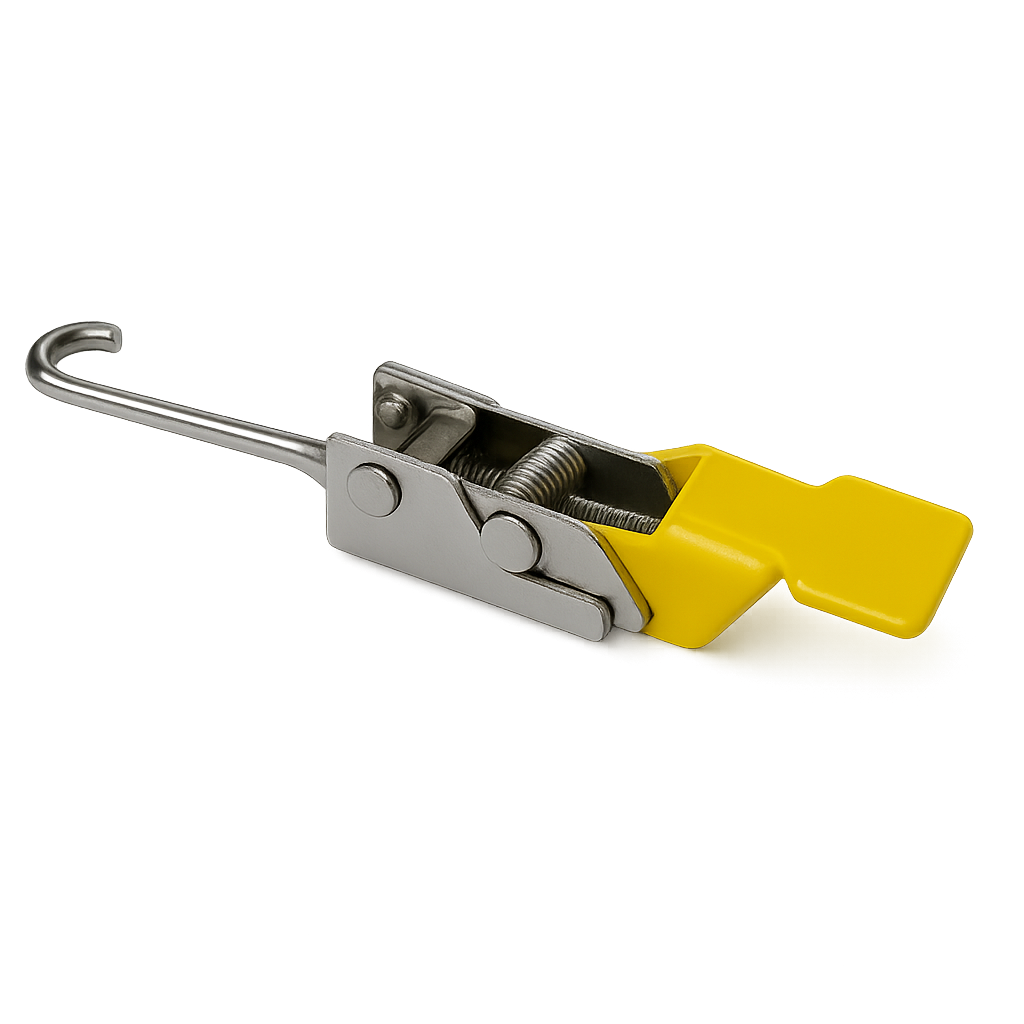

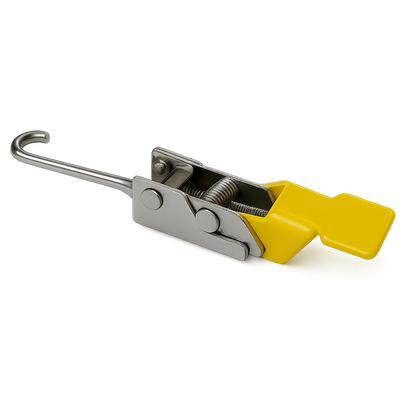

CA-1175 Adjustable Over-Center Draw Latch with Yellow Vinyl Grip

CA-1175 Adjustable Over-Center Draw Latch with Yellow Vinyl Grip

Industrial-Grade | Ergonomic Grip | Adjustable Tension | Southco A1-11-702 Equivalent

The CA-1175 is a robust and versatile over-center draw latch engineered for high-performance latching in demanding environments. Designed for quick, repeatable closures, this latch combines adjustable tension control with an ergonomic yellow vinyl handle for safe, efficient operation.

With a sturdy mechanical design and over-center locking action, the CA-1175 delivers vibration-resistant holding power, preventing accidental opening even under heavy use or transportation. Whether installed on machinery access panels, enclosures, generator doors, toolboxes, or industrial carts, this latch offers reliable security and user-friendly operation.

🔩 Product Highlights:

• ✅ Over-Center Mechanism – Creates a secure locking action that resists loosening under vibration or stress.

• 🔧 Adjustable Catch – Threaded adjustment allows for precise control of clamping force and travel distance.

• 🟡 Yellow Vinyl Grip – Non-slip and comfortable to operate, with high visibility for safety-focused settings.

• 🏗 Heavy-Duty Build – Designed for medium to heavy-duty applications with a solid, field-proven design.

• 🔄 Versatile Mounting Options – Flat base design allows installation on a variety of surfaces with ease.

📐 Technical Specifications:

• Product Code: CA-1175

• Latch Type: Adjustable Over-Center Draw Latch

• Grip Style: Yellow Vinyl Coated Handle

• Weight: 215 grams per unit

• Material Options:

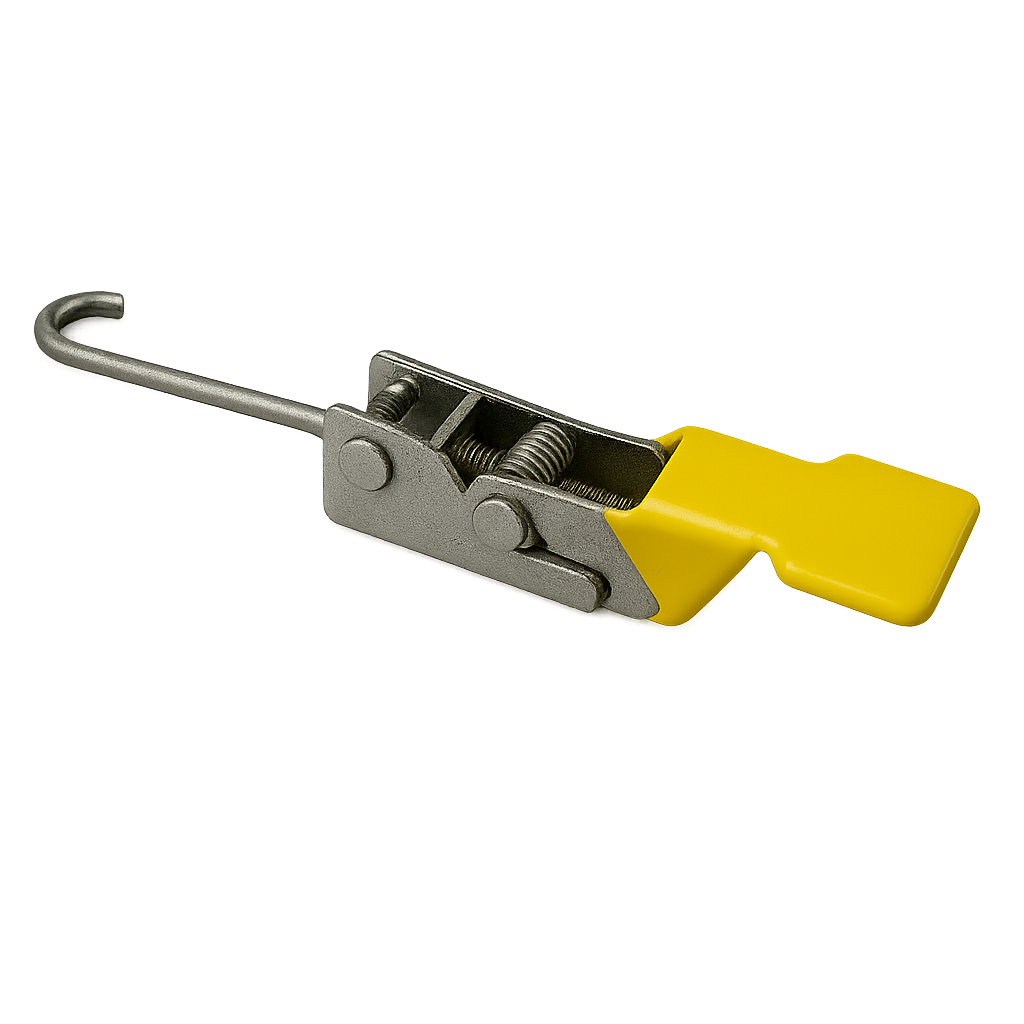

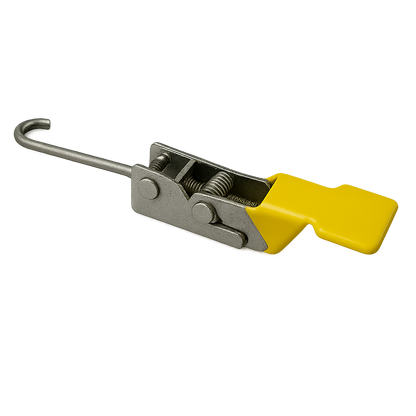

  • Carbon Steel with Clear Zinc Finish

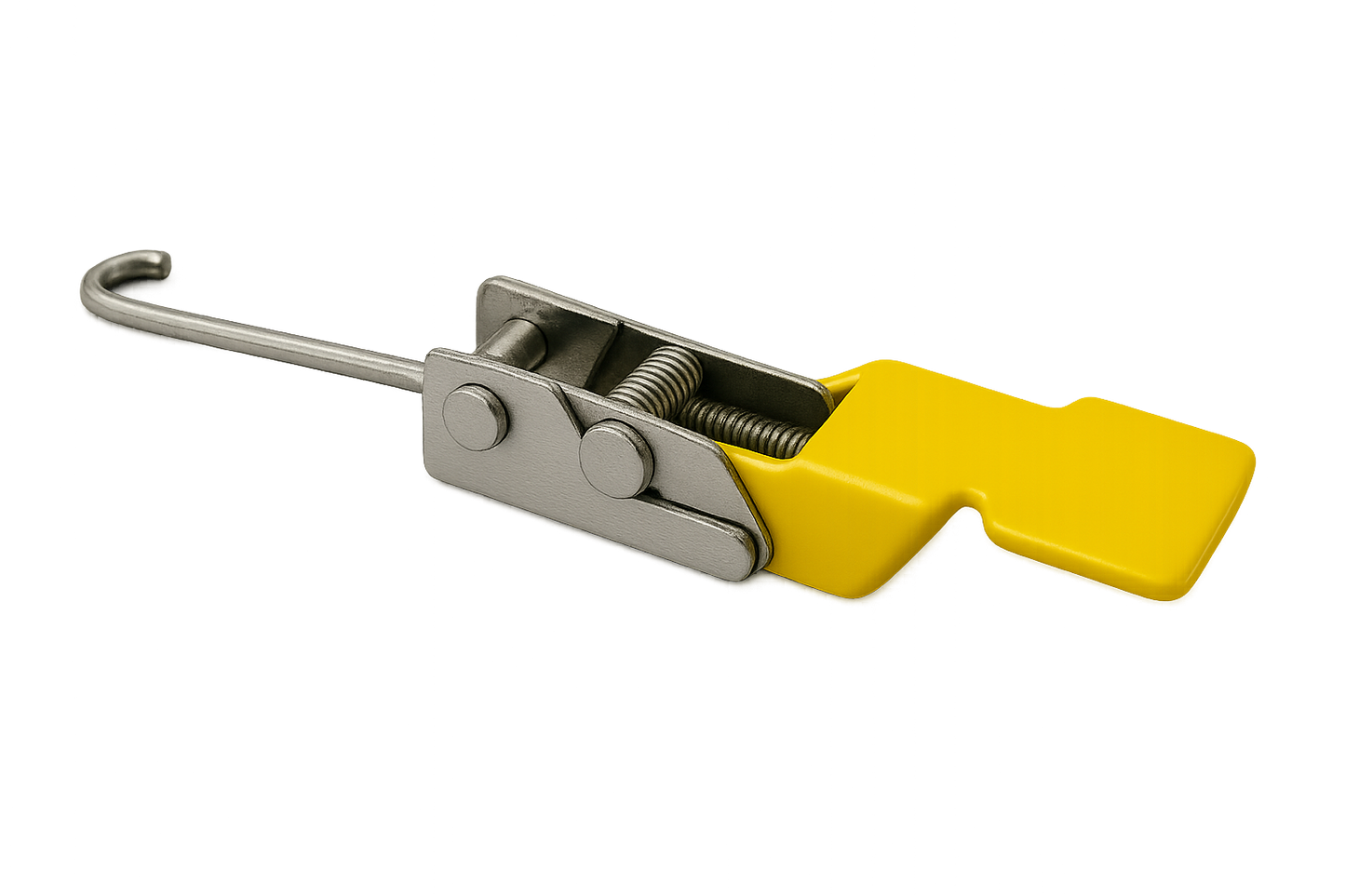

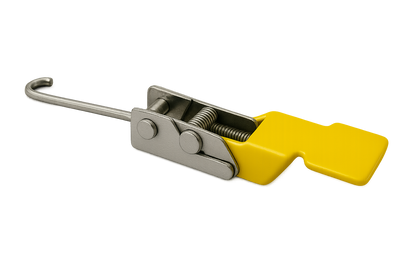

  • Stainless Steel with Clear Passivate Finish

• Packaging: 68 pieces per box

• Compatible Catch/Strike Plate: Available separately or in latch kits

🔁 Cross Reference Compatibility:

• Southco: A1-11-702

• Functionally Equivalent to: Various over-center latches used in enclosure systems, toolboxes, transport cases, HVAC panels, agricultural equipment, and generator housings.

🧩 Available Part Variations:

🛠 Common Applications:

• Industrial equipment panels

• Electrical and telecom enclosures

• Construction tools and storage units

• Agricultural and utility vehicle compartments

• HVAC systems and generator cabinets

Need a version without the vinyl grip or with different mounting options?
We also offer uncoated grip versions and alternate base configurations upon request — perfect for OEMs and fabricators seeking customized solutions.

Disclaimer:
Product images are for illustrative purposes only. Actual colors and finishes may vary slightly due to manufacturing tolerances, material differences, and lighting conditions. We strive for accuracy, but variations may occur between displayed and delivered items.
