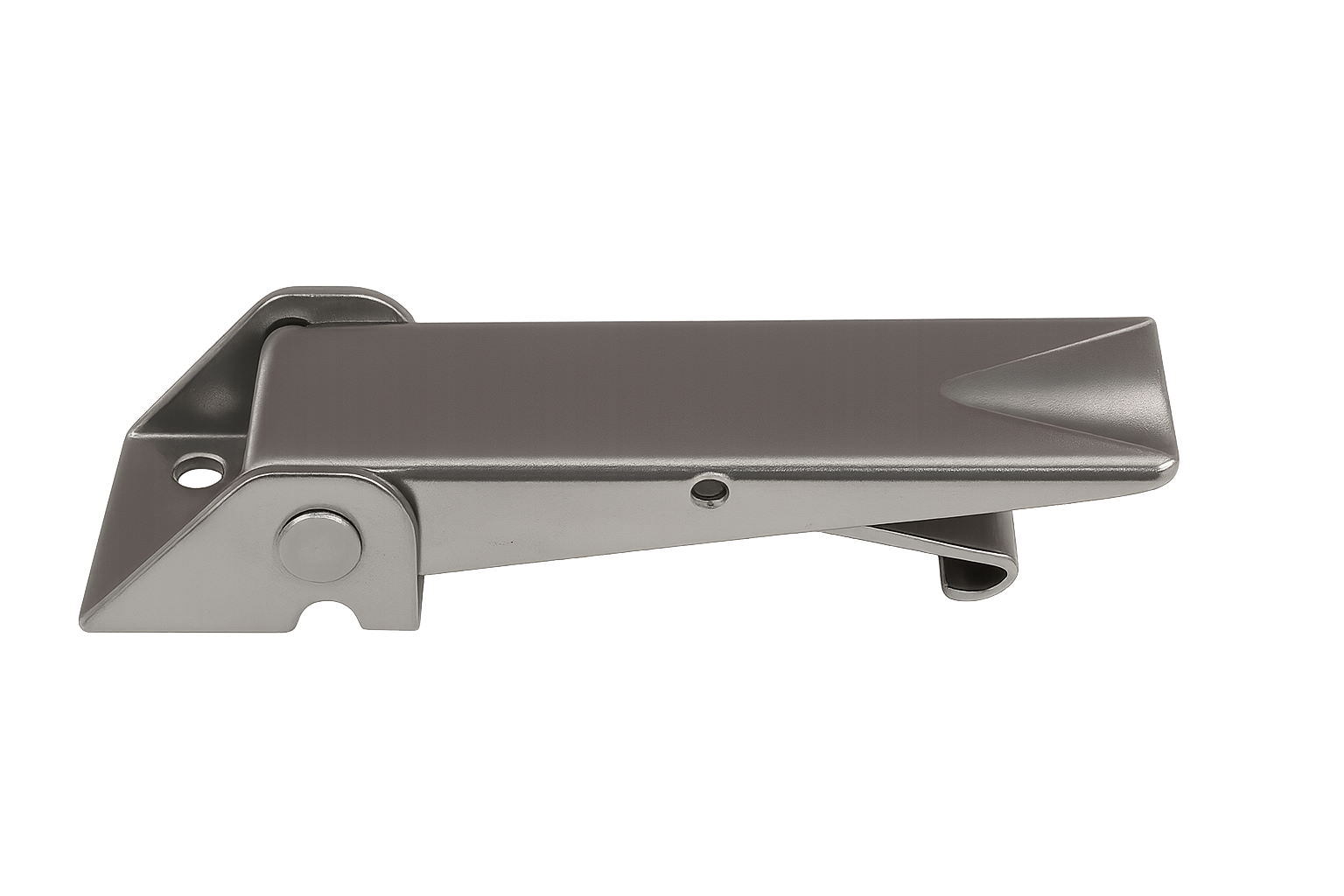

CA-1051 Adjustable Under-Center Latch – Exposed Base, Threaded, Medium Duty
The CA-1051 is a versatile, under-center adjustable latch designed with an exposed base for easy surface mounting. Compact and lightweight at 51.34 grams, it provides secure clamping with a minimum pull strength of 200 lbs, making it ideal for enclosures, panels, and equipment requiring adjustable tension.
This latch features a 10-32 threaded adjustment bolt, allowing fine-tuned clamping force and alignment. Compatible with Strike SK-1051, it’s a direct alternative to McMaster-Carr 1864A11, 1864A13 and Camloc 17L01-1X2AA, offering OEM-level performance at competitive value.
Key Features:
Under-Center Design: Ensures tight, vibration-resistant hold
Adjustable Tension: 10-32 thread allows for fine adjustment
Lightweight & Compact: Only 51.34g per unit
Strong Hold: 200 lbs minimum pull strength
Strike Compatibility: Designed to be used with Strike SK-1051
Bulk Supply Ready: Contact us for volume purchases
Part Variations:
Part Number
Material
Finish
CA-1051-ST-CZ-144
Steel
Clear Zinc
CA-1051-SS-CP-144
Stainless Steel
Clear Passivate
CA-1051-ST-ZNI-144
Steel
Zinc Nickel Plated
Cross References:
McMaster-Carr: 1864A11, 1864A13
Camloc: 17L01-1X2AA
