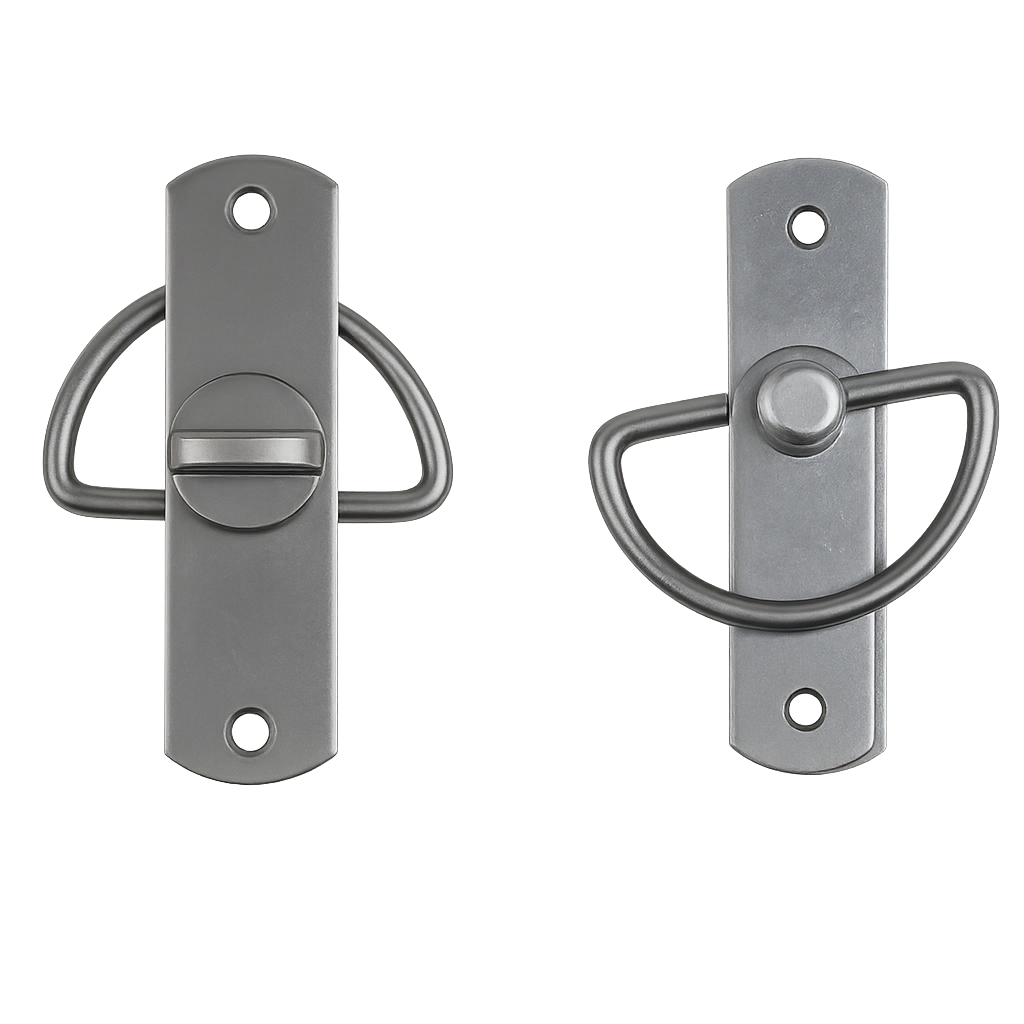

CA-0012: Self-Adjusting Compression Latch

CA-0012 Self-Adjusting Compression Latch – Secure. Compact. Built to Perform.

Designed for high-performance enclosures and industrial cabinets, the CA-0012 compression latch delivers secure tool-locking functionality in a sleek, lightweight form factor. Whether you're retrofitting or integrating into a new design, this latch is engineered to adapt, seal, and protect—every time.

Key Benefits:

• Self-Adjusting Compression
  Automatically compensates for panel and gasket variations to maintain a consistent, vibration-resistant seal.
• Tool-Locking Security
  Prevents unauthorized access—slotted head requires standard flathead tool for entry.
• Slim & Lightweight

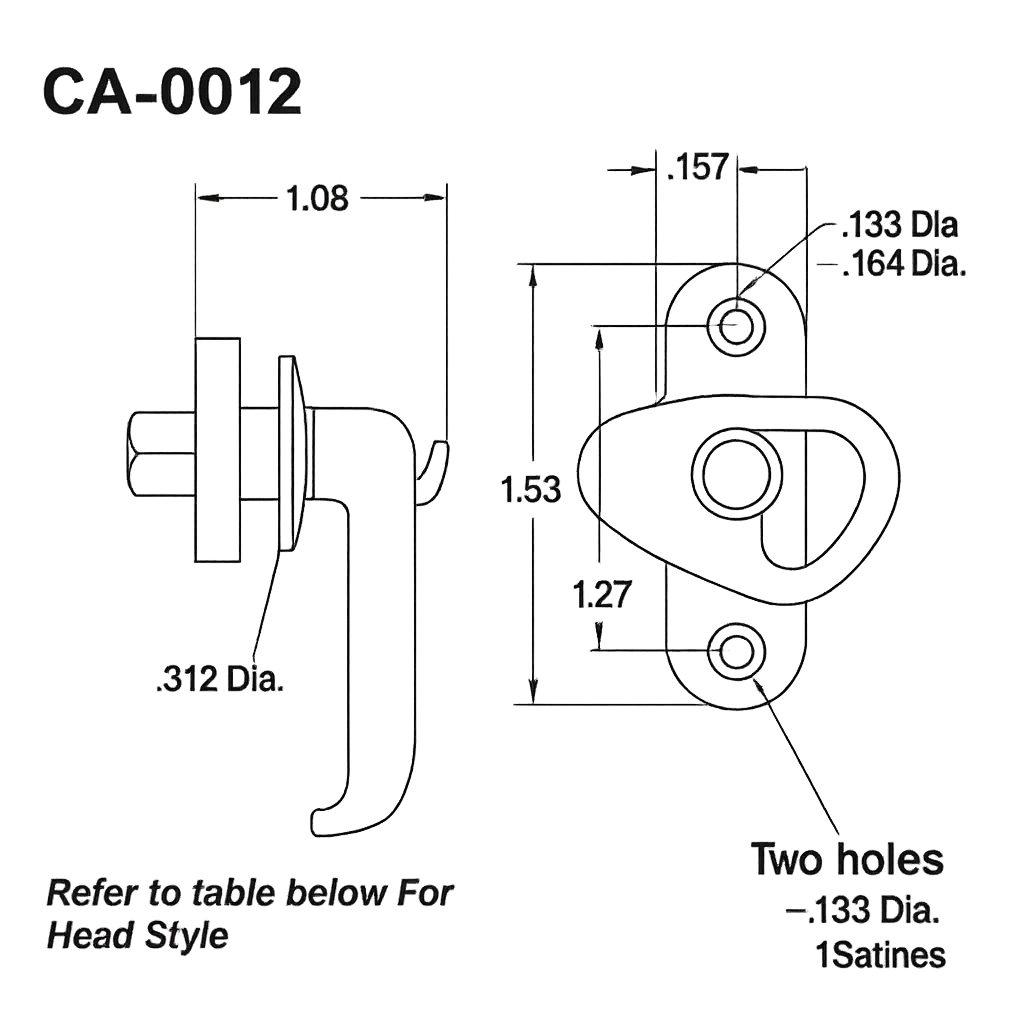

  Compact design with short knob profile measures only 2.31" in length and weighs just 29g.

Performance Highlights:

• Supports panel thicknesses from .060" to .380"
• Delivers optimal compression force with a medium-profile grip
• Built to tight tolerances for industrial reliability
• Compatible with standard cutout dimensions for easy integration or retrofitting
• Corrosion-resistant materials withstand harsh, humid, and outdoor environments


Applications:

• Electrical enclosures
• Access panels
• Industrial cabinets
• Outdoor or high-vibration installations

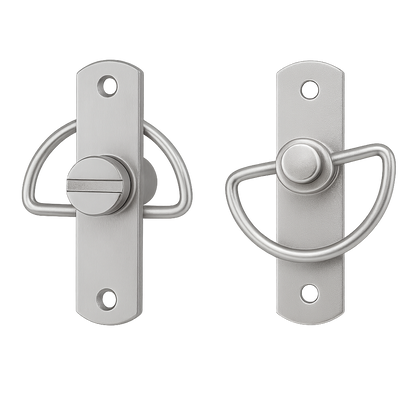

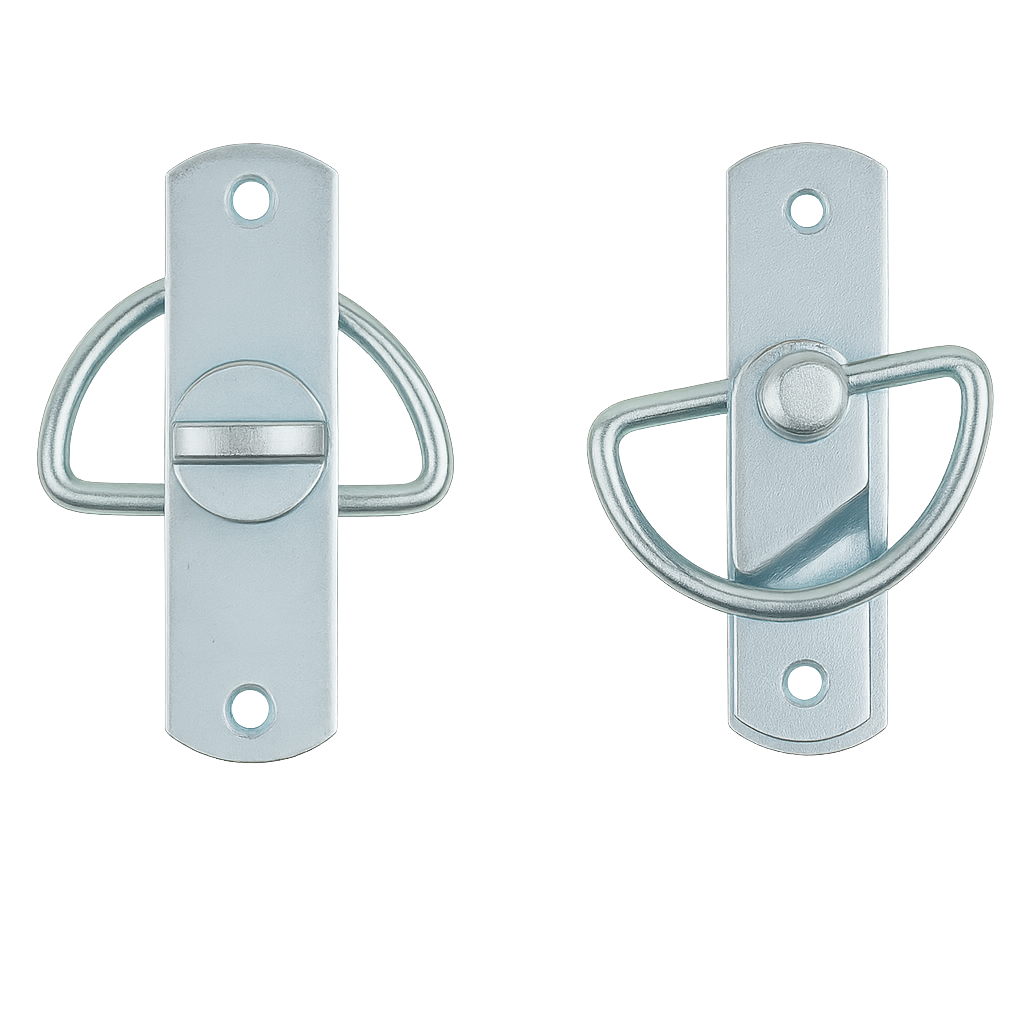

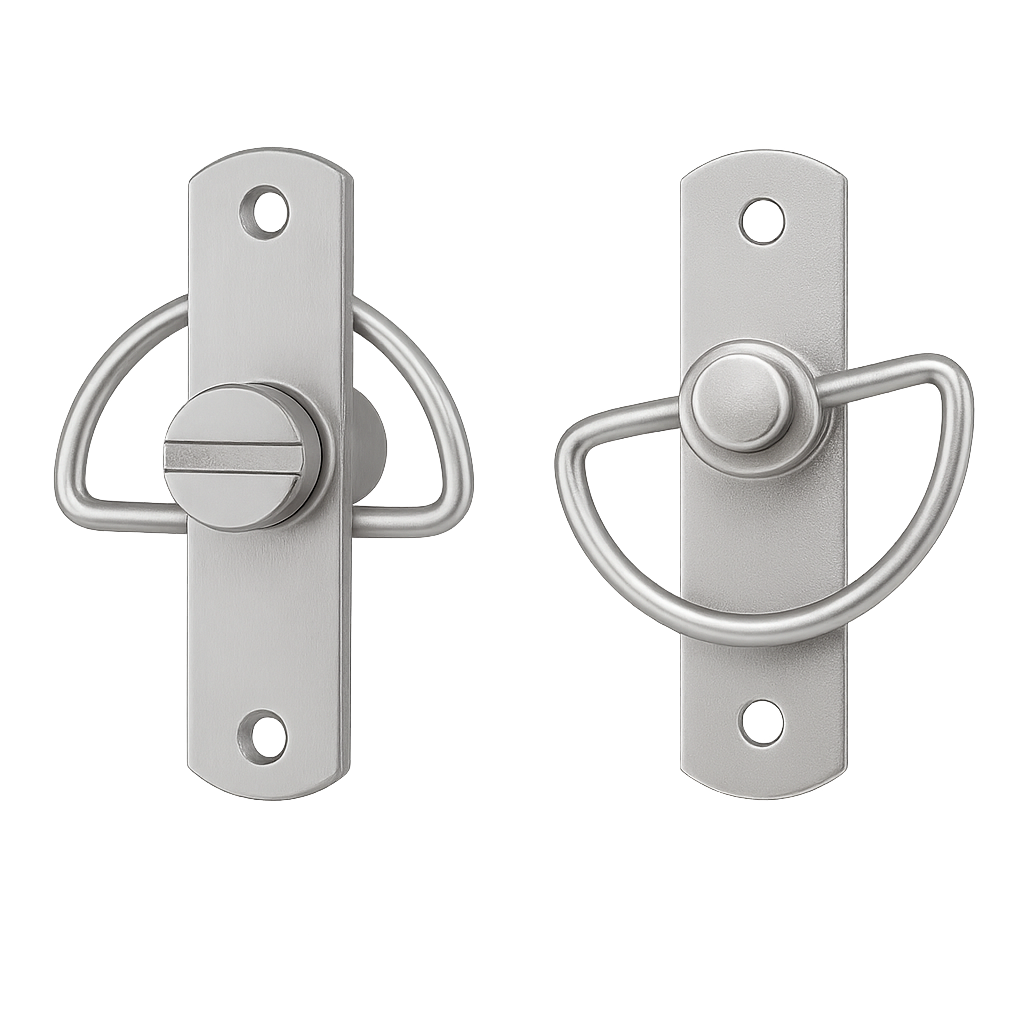

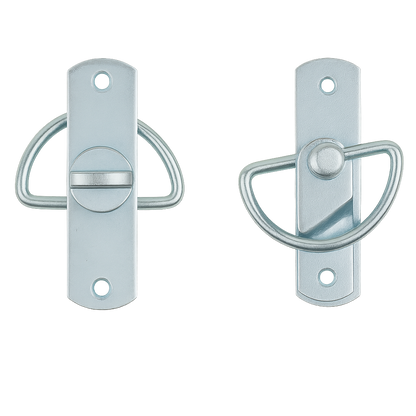

Part Variations:
